Cable Clamp

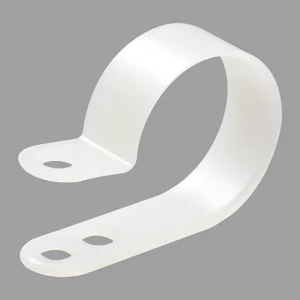

Cable clamp (screw-mount), halogen-free, RoHS compliant.

Material: UL-listed nylon 66, natural (also available in black), flame rating 94V-2.
How to use: put the wires through the loop and fix the clamp with a screw.
Application: fixing wiring in motors, electronics and air-conditioning equipment.

Quotation within 1 working day
Bulk & project pricing available

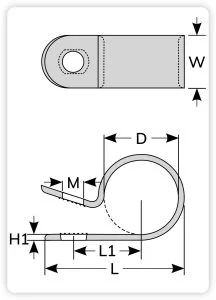

Cable clamp model selection drawing

Model	L	L1	W	H1	Mounting hole	Bundle diameter	Packing
Item No.	L	L1	W	H1	M	Bundle Dia.	Packing
WS-UC-0	16.9	8.0	9.6	1.05	4.8	3.1 (1/8″)	100pcs
WS-UC-0.5	18.5	9.2	9.6	1.05	4.8	5.0 (3/16″)	100pcs
WS-UC-1	20.0	10.4	10.1	1.10	4.6	6.35 (1/4″)	100pcs
WS-UC-1.5S	22.6	11.2	10.0	1.15	4.8	7.2 (9/32″)	100pcs
WS-UC-1.5	22.6	11.2	10.0	1.15	5.0	7.9 (5/16″)	100pcs
WS-UC-2	26.6	12.5	12.3	1.40	5.0	9.5 (3/8″)	100pcs
WS-UC-3	30.3	14.8	12.2	1.40	5.0	12.7 (1/2″)	100pcs
WS-UC-4	32.6	15.8	12.4	1.40	5.0	15.8 (5/8″)	100pcs
WS-UC-5	37.3	18.0	11.8	1.40	4.8	19.4 (3/4″)	100pcs
WS-UC-5.5	40.4	21.9	13.0	1.40	5.5	22.2 (7/8″)	100pcs
WS-UC-6	43.4	21.0	12.0	1.40	5.0	25.4 (1″)	100pcs
WS-UC-6.5	51.5	26.0	12.6	1.70	4.8	27.5 (1 1/16″)	100pcs
WS-UC-7	52.3	26.0	12.0	1.60	4.7	31.8 (1 1/4″)	100pcs
WS-UC-9	58.3	27.8	12.5	1.50	4.8	36.7 (1 1/2″)	100pcs

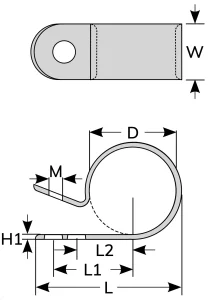

Cable clamp model selection drawing 2

Model	L	L1	L2	W	H1	Mounting hole	Bundle diameter	Packing
Item No.	L	L1	L2	W	H1	M	Bundle Dia.	Packing
WS-UC-6.7A	47	25.6	17.2	13	1.5	5.4	22.8～28.5 (7/8″)～(1 1/8″)	100pcs
