Right-Angle Nylon Cable Gland

Right-angle nylon cable gland for cable entries in tight spaces.

Material: UL-listed nylon 66 (black), flame rating 94V-2; seal insert made of thermoplastic elastomer (TPE).
Application: fixing wires and cables in distribution panels, control boxes, solar installations, traffic signals, instruments and other electrical equipment.
How to use: screw the body into place, insert the cable through the seal, then tighten the cap nut to clamp the cable — waterproof and dustproof.

Features:

Body and clamping claws are moulded in one piece for quick, easy assembly.
The cap nut tightens from the outside and can be fastened firmly by hand — quick and effortless.
IP68 dust and water tested (with gasket).
The right-angle shape suits installations where the cable has to turn.

Quotation within 1 working day

Bulk & project pricing available

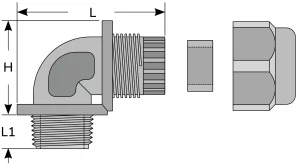

Right-angle cable gland model selection drawing

NPT thread – right-angle cable gland
Model	NPT thread size	Thread outer diameter	Panel hole diameter	Thread length	L	H	Cable diameter range	Packing
Item No.	NPT Thread	Thread O.D.	Mounting Hole	L1	L	H	Cable Range	Packing
WS-NPTA-38	3/8“-18 NPT	17.2	16.7+0.2	11.7	48.5	30.0	5～9	Lock nut and gasket not included	20pcs
WS-NPTA-12	1/2“-14 NPT	21.2	21.2+0.2	14.7	51.6	31.2	10～13		20pcs
WS-NPTA-34	3/4“-14 NPT	26.3	26.3+0.3	14.8	64.5	41.6	13～16		20pcs
WS-NPTA-114	1 1/4“-11.5 NPT	41.9	41.9+0.3	18.8	85.0	53.0	22～29		10pcs

# Lock nut and gasket sold separately. # IP68 dust and water tested (with gasket). # When ordering parts separately, add a letter after the model: lock nut (L), gasket (W), body (B), seal (S), cap nut (N).
Example: the body of WS-NPTA-38 is ordered as NPTAB-38.
