Non-Insulated Cord End Terminals
Terminals & Crimping Tools

Non-Insulated Cord End Terminals

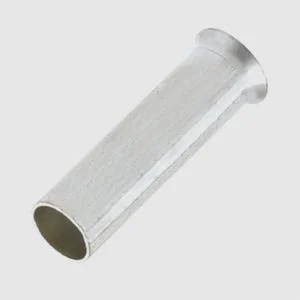

Non-insulated cord end terminals (bootlace ferrules).

Features of non-insulated cord end terminals:

  • Compact: smaller than other terminals, ideal where space is limited.
  • Material: usually copper or another highly conductive metal, often tin-plated for better corrosion resistance and conductivity.
  • Widely used: found in all kinds of electrical equipment, from household appliances to industrial machinery.
  • Easy to install: a simple crimping tool joins conductor and terminal securely.
  • Quotation within 1 working day
  • Bulk & project pricing available

Non-insulated cord end terminals are widely used for electrical connections, mainly to connect conductors to electrical equipment. Simple and easy to install, they are a standard part in industry.

Model Suitable cable I.D. Tube length L1 Length L
WS-EN0.5-6 AWG：22 DIN mm2：0.5 1.0 6.0
WS-EN0.5-8 AWG：22 DIN mm2：0.5 1.0 8.0
WS-EN0.5-10 AWG：22 DIN mm2：0.5 1.0 10.0
WS-EN0.75-6 AWG：22 DIN mm2：0.75 1.2 6.0
WS-EN0.75-8 AWG：22 DIN mm2：0.75 1.2 8.0
WS-EN0.75-10 AWG：22 DIN mm2：0.75 1.2 10.0
WS-EN1.0-10 AWG：18 DIN mm2：1.0 1.4 10.0
WS-EN1.0-12 AWG：18 DIN mm2：1.1 1.4 12.0
WS-EN1.5-7 AWG：16 DIN mm2：1.5 1.7 7.0
WS-EN1.5-8 AWG：16 DIN mm2：1.5 1.7 8.0
WS-EN1.5-10 AWG：16 DIN mm2：1.5 1.7 10.0
WS-EN1.5-12 AWG：16 DIN mm2：1.5 1.7 12.0
WS-EN2.5-7 AWG：14 DIN mm2：2.5 2.2 7.0
WS-EN2.5-8 AWG：14 DIN mm2：2.5 2.2 8.0
WS-EN2.5-10 AWG：14 DIN mm2：2.5 2.2 10.0
WS-EN2.5-12 AWG：14 DIN mm2：2.5 2.2 12.0
WS-EN4-8 AWG：12 DIN mm2：4 2.8 8.0
WS-EN4-9 AWG：12 DIN mm2：4 2.8 9.0
WS-EN4-10 AWG：12 DIN mm2：4 2.8 10.0
WS-EN4-12 AWG：12 DIN mm2：4 2.8 12.0
WS-EN4-15 AWG：12 DIN mm2：4 2.8 15.0
WS-EN4-18 AWG：12 DIN mm2：4 2.8 18.0
WS-EN6-10 AWG：10 DIN mm2：6 3.5 10.0
WS-EN6-12 AWG：10 DIN mm2：6 3.5 12.0
WS-EN6-15 AWG：10 DIN mm2：6 3.5 15.0
WS-EN6-18 AWG：10 DIN mm2：6 3.5 18.0
WS-EN10-12 AWG：8 DIN mm2：10 4.5 12.0
WS-EN10-15 AWG：8 DIN mm2：10 4.5 15.0
WS-EN10-18 AWG：8 DIN mm2：10 4.5 18.0
WS-EN16-12 AWG：6 DIN mm2：16 5.8 12.0
WS-EN16-15 AWG：6 DIN mm2：16 5.8 15.0
WS-EN16-18 AWG：6 DIN mm2：16 5.8 18.0
WS-EN25-15 AWG：4 DIN mm2：25 7.3 15.0
WS-EN25-16 AWG：4 DIN mm2：25 7.3 16.0
WS-EN25-18 AWG：4 DIN mm2：25 7.3 18.0
WS-EN25-22 AWG：4 DIN mm2：25 7.3 22.0
WS-EN35-16 AWG：2 DIN mm2：35 8.3 16.0
WS-EN35-18 AWG：2 DIN mm2：35 8.3 18.0
WS-EN35-20 AWG：2 DIN mm2：35 8.3 20.0
WS-EN35-25 AWG：2 DIN mm2：35 8.3 25.0
WS-EN50-18 AWG：1.0 DIN mm2：50 10.3 18.0
WS-EN50-20 AWG：1.0 DIN mm2：50 10.3 20.0
WS-EN50-25 AWG：1.0 DIN mm2：50 10.3 35.0
WS-EN70-22 AWG：1.0 DIN mm2：70 13.5 22.0
WS-EN70-25 AWG：1.0 DIN mm2：70 13.5 25.0
WS-EN95-25 AWG：4.0 DIN mm2：95 14.7 25.0
WS-EN95-32 AWG：4.0 DIN mm2：95 14.7 32.0
WS-EN120-30 AWG：DIN mm2：120 16.7 30.0
WS-EN120-32 AWG：DIN mm2：120 16.7 32.0
WS-EN120-34 AWG：DIN mm2：120 16.7 34.0
WS-EN150-32 AWG：250～300 mcm DIN mm2：150 19.5 32.0
WS-EN150-38 AWG：250～300 mcm DIN mm2：150 19.5 38.0
