Screw-On Wire Connector
Wire Connectors

Screw-On Wire Connector

Screw-on wire connector (twist-on wire nut) with spring insert.

  • Material: PP, flame rating 94V-2.
  • How to use: strip the wire ends, insert them into the connector and twist clockwise.

Features:

  1. The internal spring holds solid wires and thicker stranded wires.
  2. Temperature rating up to 105℃.
  • Quotation within 1 working day
  • Bulk & project pricing available

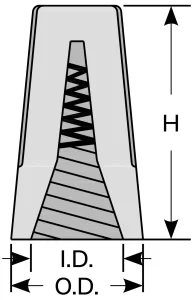

Screw-on wire connector model selection drawing
Screw-on wire connector model selection drawing
Model Width Inner diameter Height Wire combination Colour Packing
Item No. O.D. I.D. H sq AWG Color Packing
WS-SW-71BH 8.6 6.5 15.2 Max. 2#1.25
Min. 2#0.5		 Max. 2#16
Min. 2#18		 Grey 100pcs

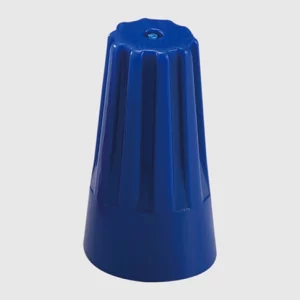

WS-SW-72BH 9.9 7.1 17.7 Max. 3#1.25
Min. 2#0.5		 Max. 3#16
Min. 2#22		 Blue 100pcs

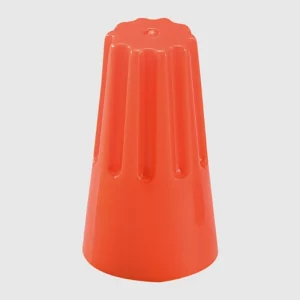

WS-SW-73BH 12.7 9.7 22.0 Max. 4#2.0
Min. 3#1.25		 Max. 4#14
Min. 3#16		 Orange 100pcs

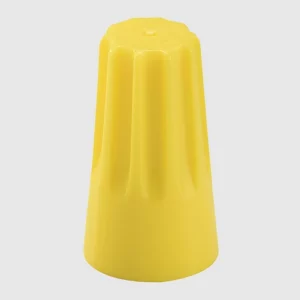

WS-SW-74BH 14.0 11.0 24.6 Max. 3#3.5
Min. 3#2.0		 Max. 3#12
Min. 3#14		 Yellow 100pcs

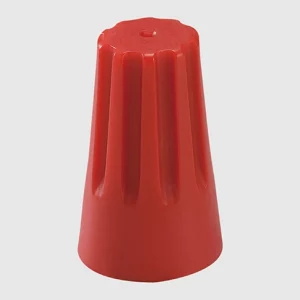

WS-SW-76BH 16.3 13.1 26.5 Max. 5#5.5
Min. 2#3.5		 Max. 5#10
Min. 2#12		 Red 100pcs
