Slotted Wiring Duct
Wiring Ducts

Slotted Wiring Duct

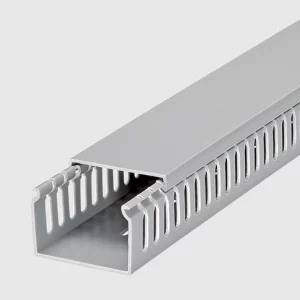

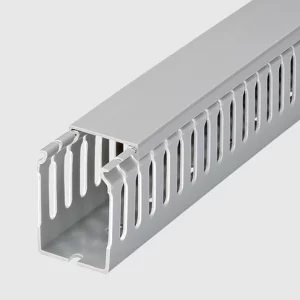

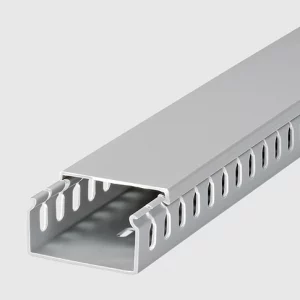

Slotted wiring duct is an insulated wiring duct for control panels.

  • Material: UL-listed Nan Ya PVC (grey), flame rating UL 94V-0 and European M1, temperature rating 85℃.
  • Construction: a duct base and a snap-on cover; the side walls of the base have wire exit slots.
  • Features: the slotted design makes wiring to terminal blocks easy and helps heat dissipation.
  • Quotation within 1 working day
  • Bulk & project pricing available

Slotted Wiring Duct

Features:

  1. The slots on both sides of the base line up, so the duct can be cut and joined at any angle while keeping the panel neat and tidy.
  2. The specially designed cover stays firmly on the base, and the smooth joints will not cut hands or wires.
  3. UL test temperature 50℃.

The cover can be replaced with an anti-slip cover with an adhesive layer, which grips the base more tightly and keeps the cover firmly in place.
For widths under 20 mm or over 125 mm, please call us before ordering.
Model changes: MD-2 ➔ MQ-2, KD-5.5 ➔ KQ-5.5, HD-8 ➔ HQ-8

Slot size table
Model

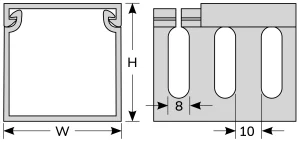

8 mm slot insulated wiring duct
8 mm slot insulated wiring duct
WS-MD
Size
8 mm slot
Application For power panels and high-voltage panels. Fits terminal blocks with 18 mm pitch.
Model

6 mm slot insulated wiring duct
6 mm slot insulated wiring duct
WS-KD
Size
6 mm slot
Application For general automation and machine control panels. Fits terminal blocks with 12 mm pitch.
Model

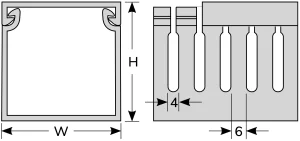

4 mm slot insulated wiring duct
4 mm slot insulated wiring duct
WS-HD
Size
4 mm slot
Application For panels with many outgoing wires or thin wiring. Fits terminal blocks with 10 mm pitch.
Item No. W x H Length
L
Slot W x H
8mm 6mm 4mm mm
WS-MD-0.5 WS-HD-0.5 15 X 25 1.7 m per length = base + cover
WS-MD-0.7 WS-HD-0.7 20 X 20
WS-MD-0 WS-HD-0 25 X 25
WS-MD-1 WS-KD-1 WS-HD-1 25 X 45
WS-MD-1.1 WS-HD-1.1 30 X 30
WS-MD-1.2 WS-KD-1.2 WS-HD-1.2 33 X 33
WS-MD-1.5 WS-KD-1.5 WS-HD-1.5 33 X 45
WS-MD-2 WS-KD-2 WS-HD-2 45 X 45
WS-MD-2.2 WS-HD-2.2 50 X 50
WS-MD-2.5 WS-KD-2.5 WS-HD-2.5 65 X 45
WS-MD-3 WS-KD-3 WS-HD-3 33 X 65
WS-MD-4 WS-KD-4 WS-HD-4 25 X 65
WS-MD-5 WS-KD-5 WS-HD-5 45 X 65
WS-MD-5.5 WS-KD-5.5 WS-HD-5.5 60 X 60
WS-MD-5.7 WS-KD-5.7 WS-HD-5.7 65 X 65
WS-MD-6 72 X 64
WS-MD-6.5 WS-HD-6.5 33 X 100
WS-MD-6.6 37.5 X 100
WS-MD-6.7 WS-KD-6.7 WS-HD-6.7 48 X 100
WS-MD-6.8 55 X 100
WS-MD-6.9 75 X 75
WS-MD-7 70 X 100
WS-MD-7.1 75 X 100
WS-MD-7.2 100 X 50
WS-MD-7.5 100 X 75
WS-MD-8 WS-KD-8 WS-HD-8 100 X 100
WS-MD-9 120 X 75
WS-MD-10 150 X 75
WS-MD-12 150 X 100
WS-MD-15 200 X 100
WS-MD-21 200 X 150
WS-MD-22 200 X 200
WS-MD-30 300 X 100
